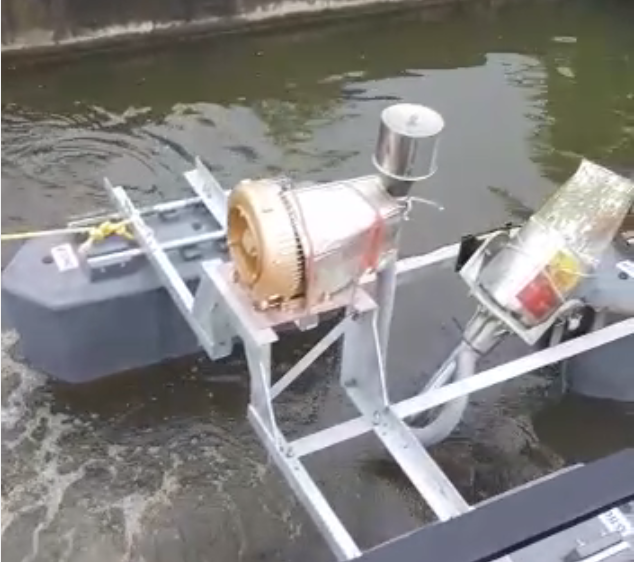

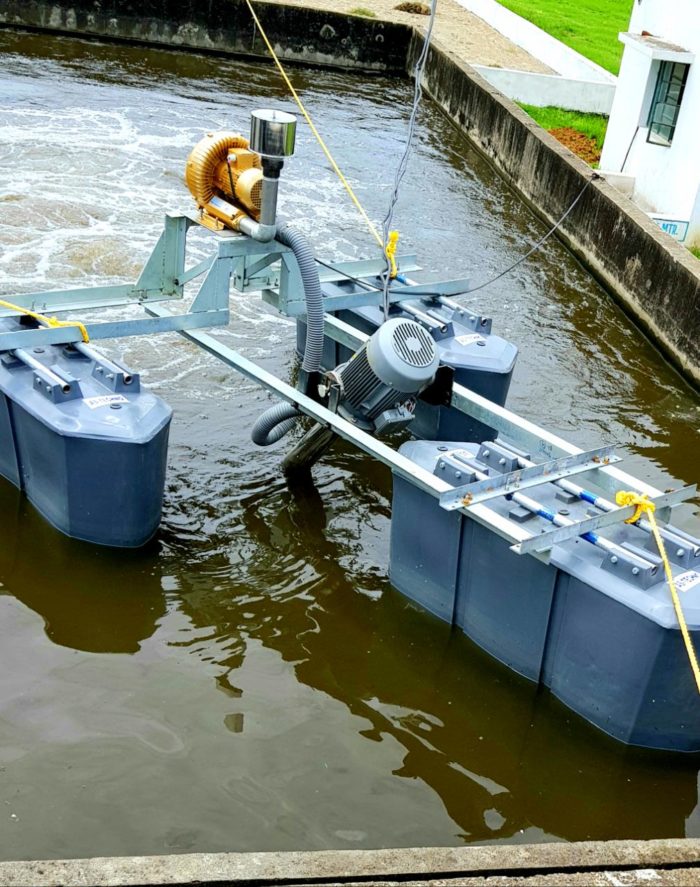

OXY-AIR MIXER / AERATOR

The A S TECHNO OXY-AIR MIXER is designed for a variety of applications in which oxygen transfer and mixing are required along with portability. This flexible, dependable aerator is best suited for deeper tanks up to depth of 8 Meters that optimize the aeration and mixing zones while increasing oxygen utilization. The deep tank also minimizes land requirements which in turn often reduces overall construction cost. Main aim to maximise the oxygen transfer rate and to reduce overall energy consumption,

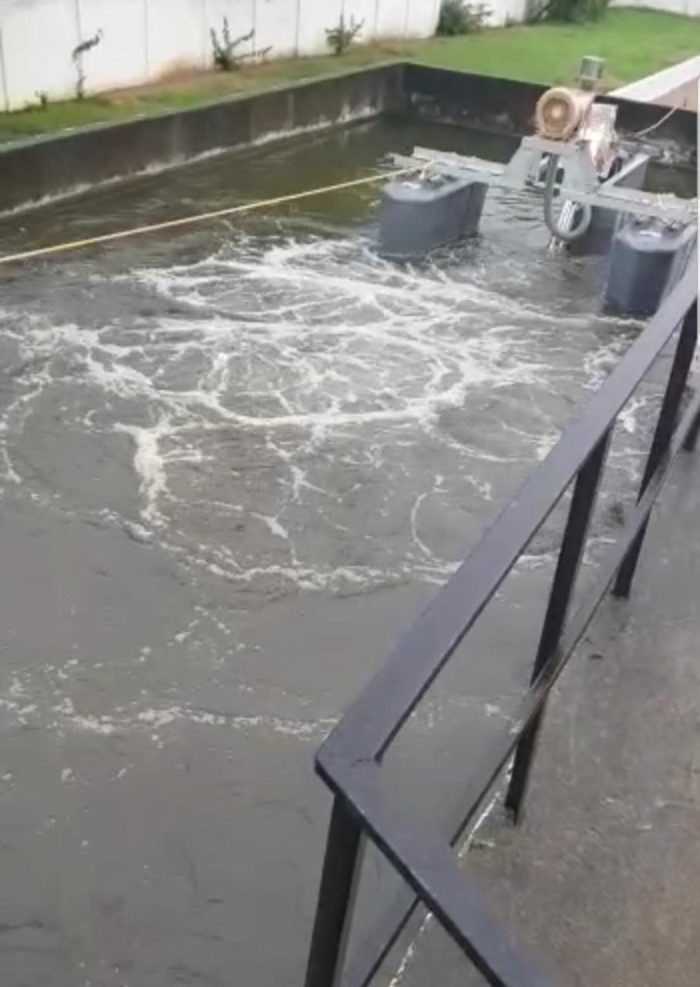

The OXY-AIR MIXER design places the aerator at the surface of the tank and creates distinct zones of influence by the thrust and churning effect. The Primary or mixing zone, has the highest rate of mixing effect.
The Secondary, or oxygen transfer rate will be optimised because of the air travelling time beneath the surface of water is higher than that of diffusers and conventional surface aerators (approximately 1.6 times) providing energy for mixing and making optimal use of available oxygen. OXY-AIR MIXER/ Aerator are designed consist assembly which diffuse the air below the surface of water in the form of small air bubbles about 1.5 mm to 2.5 mm to increase the surface area in contact with water. Which results in maximum oxygen transfer efficiency not less than 1.5 to 2.0 kg O2/kW hr.
INDIAN MADE The entire OXY-AIR / MIXER range is designed and manufactured wholly Within INDIA with local parts support.
